Advanced all-in-one program/debug/test interface for many ARM Cortex & NXP 8/16/32-bit devices.
  • Support device: Kinetis/S32, HCS08, RS08, HC(S)12(X), S12Z, ColdFire V1/+V1, ColdFire V2-4, Qorivva MPC5xxx, DSC, HC08, MPC 5xx/8xx, STMicroelectronics' SPC56,ARM Cortex , and STM8(with STM8 adapter),Infineon ,Renesas(with Renesas adapter
Standard Cyclone Features:
  • Stand Alone Programming - Program targets with a PC or without a PC
  • Powerful Automation Control - PC based SDK, Console, and GUI Control, Gang Programming, Dynamic Data Programming
  • Multiple Communications Interfaces- USB 2.0, Ethernet, and Serial interfaces
  • Touchscreen LCD Display - Easy to use touch screen interface with remote access
  • Target Power Management- Ability to provide and switch power to a target
  • Auto-Counting & Shared Serial Numbers - Programming can incorporate sophisticated serialization
  • Ethernet Based Debugging- Compatible with many development IDEs
  • Programming Control Port -10-pin port can launch programming, get status/results
Cyclone FX Advanced Features:
  • High Speed Programming Target - Download rates reaching 75 Mbits/s
  • Larger On-Board Storage - 1+ Gigabyte of encrypted internal memory stores 200+ programming images
  • External SDHC Memory - External memory via SDHC Card Port
  • Advanced Testing Feature - Run Tests Prior to Programming
  • Target Current and Voltage Measurement
  • ProCryption Security
    - RSA/AES Encryption (Unique ImageKeys Safeguard Valuable IP)
    - Programming count/Date limits, etc. (Exercise Control Over Remote Operations)

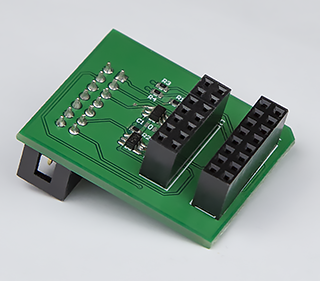

Renesas adapter for CYCLONE-FX-UNIV
  • The adapter plugs into Port C and Port E of the Cyclone and connects to the target via a 14-pin ribbon cable (included with the Cyclone FX Universal).
Cyclone LC Protected and Encrypted SAP Image Activation License
    It allows users to place protection on their programming images to restrict image use by date range or number of programs allowed. It also allows users to create RSA/AES encrypted programming images that use their own uniquely generated ImageKey. These images may only be used to program targets on Cyclones that are pre-configured with this unique ImageKey. This license keeps the user securely in control of both their IP and the programming process.
  • Restrict Image Use
  • Encrypted (eSAP) Programming Images
  • Encryption is Easy To Implement and Manage
32 GB Encryped SDHC Flash Card for Cyclone FX

    This allows users to add expandable and easily swappable storage for their programming images. Adding one or more SD cards to your programming setup can give you added flexibility, while encryption helps keep your IP safe. An SD card can easily be moved from Cyclone to Cyclone. Our 32GB Encryptyed Cyclone SDHC Card is pre-formatted, tested, and certified to work with CYCLONE FX programmers. The SDHC port features are not available on Cyclone LC.


Cyclone Power Supply Replacement Part

  • Input - 100-240V, 50-60Hz, 0.48A
  • Output - 5.9V, 3.0A, 17.7W, Center positive
  • 58.25 inches (148cm) cable length
  • Barrel connector - 5.5mm outer diameter, 2.5mm inner diameter
  • 5 interchangeable international adapters

Cyclone for Renesas(Discontinued)
Stand-Alone In-Circuit Programmer for Renesas

  • Cyclone for Renesas has been discontinued. PEmicro now supports Renesas devices via the Cyclone Universal FX with our Renesas adapter.
